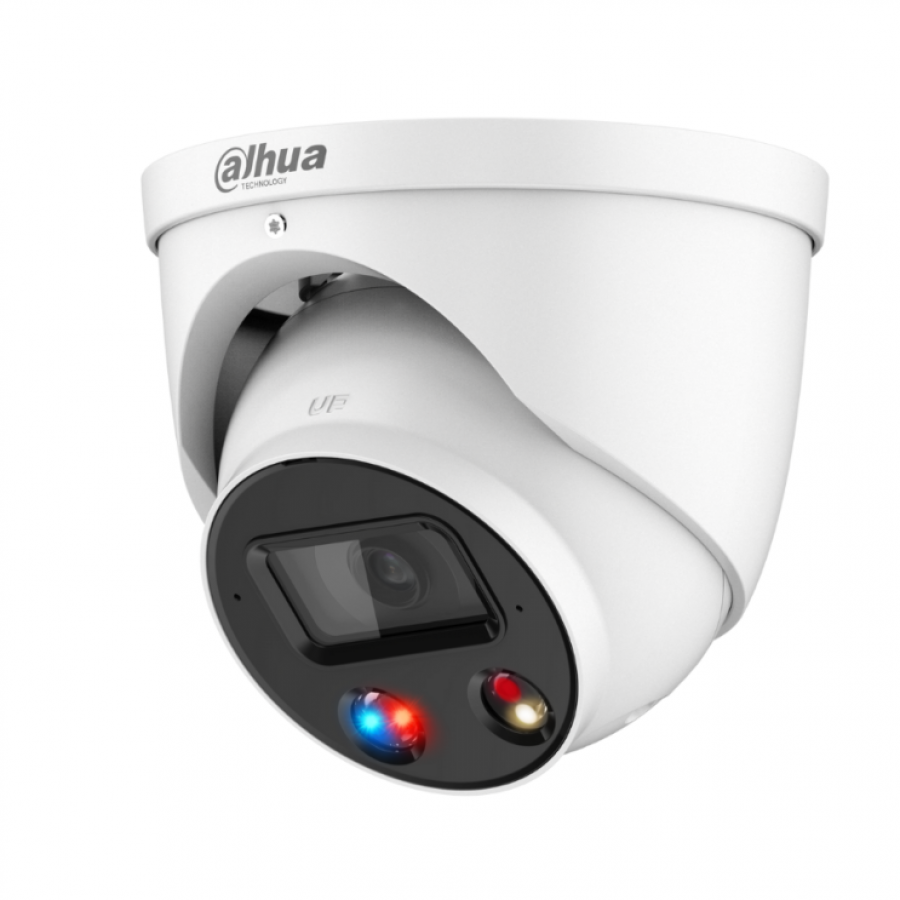

Dahua 6 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera

DH-IPC-HDW3649H-AS-PV-ANZ

0 Reviews
Add to wishlist
Product info
Brand

Dahua

Category
Description

The Dahua DH-IPC-HDW3649H-AS-PV-ANZ is a 6MP AI ColorVu Starlight Bullet Network Camera delivering exceptional 24/7 surveillance. With advanced AI ColorVu technology and starlight low-light capabilities, IOT tech recommends this camera for clear day/night monitoring.

Popular tags

PRODUCT DESCRIPTION

IOT tech is excited to introduce the DAHUA® DH-IPC-HDW3649H-AS-PV-ANZ, a cutting-edge 6MP AI ColorVu Starlight Bullet Network Camera designed for exceptional 24/7 surveillance capabilities.

Featuring a 1/1.8" 6MP progressive scan STARVIS™ CMOS image sensor, this camera delivers high-resolution video footage with stunning clarity and detail. Its advanced AI ColorVu technology enables vivid color imaging even in low-light conditions, providing clear and accurate color reproduction without the need for traditional infrared illumination.

The DH-IPC-HDW3649H-AS-PV-ANZ is equipped with a motorized lens, allowing remote adjustment of the viewing angle and focus for optimal coverage and image quality. This flexibility simplifies installation and ensures seamless monitoring of your desired areas.

Designed for versatility, this bullet camera is suitable for both indoor and outdoor environments with an IP67 weather-resistant and IK10 vandal-resistant housing. It also supports advanced features like Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (DNR) for improved image quality in challenging lighting conditions.

Upgrade your security infrastructure with the DAHUA® DH-IPC-HDW3649H-AS-PV-ANZ and experience exceptional 24/7 surveillance backed by IOT tech's expertise and commitment to quality. Enjoy clear day/night monitoring with vivid color imaging and starlight low-light performance.

FEATURES

  • · 6-MP 1/2.7" CMOS image sensor, low luminance, and high definitionimage.
  • Outputs max. 6 MP (3200 × 1800) @25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 30 mand warm light distance is 30 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicableto various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicableto various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support theclassification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scenechanging, audio detection, no SD card, SD card full, SD card error,network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SDcard; buit-in dual MICs; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply.
  • IP67 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • One press arming/disarming through alarm input.

SPECIFICATION

Camera
Image Sensor 1/2.7" CMOS
Max. Resolution 3200 (H) × 1800 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination0.003 lux@F1.0 (Color, 30 IRE)0.0003 lux@F1.0 (B/W, 30 IRE)0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)1 (warm light)
Pan/Tilt/Rotation RangePan: 0°–360°Tilt: 0°–78°Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: H: 97°; V: 70°; D: 128°3.6 mm: H: 78°; V: 58°; D: 102°
Iris Type Fixed
Intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification andaccurate detection of vehicle and human)
SMD 4.0 Less false alarm, longer detection distance
Smart Search Work together with Smart NVR to perform refineintelligent search, event extraction and merging to eventvideos.
Quick Pick With AI NVR, quickly pick up the human/vehicle targetsthat users are interested in from SMD events
AI SSA Adopt deep learning algorithms to adjust the parametersof the image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supportedby the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame RateMain stream: 3200 × 1800@(1 fps–25/30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1fps–30 fps)Third stream: 1920 × 1080@(1 fps–25/30 fps)*The values above are the max. frame rates of eachstream; for multiple streams, the values will be subjectedto the total encoding capacity.
Stream Capability 3 streams
Resolution6M (3200 × 1800); 5M (2880 × 1620); 4M (2688 ×1520/2560 × 1440); 3M (2304×1296/2048 × 1536);1080P (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480);CIF (352×288/352×240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32kbps–8192 kbpsH.265:12kbps–8192 kbp
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regionalcustom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520resolution and lower)
Mirror Yes
Privacy Masking 8 areas
